Flagship Products

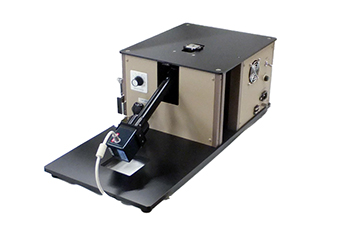

☆Newly developed☆ SURFACE STRESS METER
Model: FSM-6000X

Will be launched soon.

  • Measures glass surface stress and depth of layer optically.
  • The original calculation algorithm achieves accurate measurements.
  • Be improved in various aspects compared to previous FSM-6000LE, e.g. prevent immersion liquid from soiling a machine by mean of the advanced prism,the electrical dimming is adopted by the machine.

model: FSM-6000X Catalogue

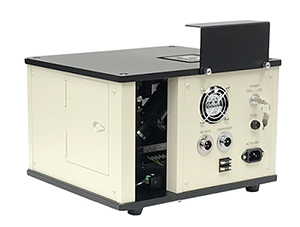

Scattered Light Photoelastic Stress Meter
Model:SLP-1000/SLP-2000

Enables to measure stress distribution of chemically strengthened glass in ion exchanging between Lithium-ion and Sodium-ion (Li+ → Na+) .

  • Distribution of refractive index in glass doesn’t have influence on a measurement result.
  • Available for measuring glass having a curvature.
  • 10um diameter of laser beam achieves pinpoint measurement.
  • Stress profile from the top surface to inside glass is described by the data synthesizing between SLP-1000/2000 and FSM-6000.

model: SLP-1000 Catalogue
model: SLP-2000 Catalogue

SURFACE STRESS METER
Model: FSM-6000LE/IR/UV

Measures surface stress of chemically strengthened or thermally strengthened glass.

  • Available for measuring double ion exchanged glass
  • Graphically displays cross-sectional stress distribution.

model: FSM-6000LE Catalogue
model: FSM-6000LEIR Catalogue
model: FSM-6000LEUV Catalogue

SURFACE STRESS METER handheld type
Model: FSM-7000H

Suitable for measuring surface stress of a large glass plate.

  • Built-in camera
  • Improves data certainty and stability for a measurement.
  • Power supply is provided from a USB in the computer.

In order to measure surface stress for a chemically strengthened glass,FSM-6000 has been widely adopted by a lot of our users. Especially,FSM-7000H was developed based on the request which is to do a measurement for a larger thermally strengthened glass with a smaller and lighter machine,automatically.

model: FSM-7000H catalogue
